3/5 Ply Automatic Corrugated Board Plant
Corrugated Paper Box Machinery
|
|
|
| |
|
ACME Single Facer |
|
|
 |
Quality corrugated sheets or rolls are made in the ACME SINGLE FACER which is
designed to operate on all grade of paper.
Motorised loading reel stand is
provided with double arm lifting and twin unwinding shafts for paper reels.
Hand wheels are provided to upper corrugating rolls for adjustment of pressure
at any selected setting.
One side hand wheel with worm for the adjustment
of the pressure roll. |
|
|
|
TOP
|
|
ACME Single Facer With Two
Profile |
|
 |
Modern single facers must be flexible enough
to change flutes quickly to allow the plant to meet the customers needs
without excessive downtime.
The unique slide roll system, with corrugating rolls mounted on two
sides of one frame, allows a complete roll changing in less than 30
minutes. flute change are fast, simple and safe. Once the roll carriage
is in place there are no adjustment to be made and no fine tuning is
required.
Since the rolls are removed and replaced automatically, the roll change
is safe and easy even when the rolls are hot, the fullproof design of
cartridge roll change can be routinely and safely accomplished, even by
less experience crews.
The quick Flute Change capability allows the box plant greater
flexibility in scheduling as well as the ability to offer the customer
whatever flute profile is needed. |
| |
|
TOP
|
|

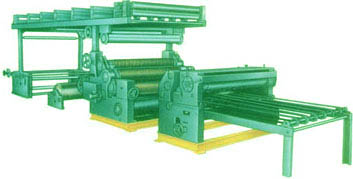

ACME Two Ply Combined Corrugating Machine |
 |
This heavy-duty Corrugation
machine with four times capacity in production than the ordinary
corrugation. The machine is provided with steam shower and three
pre-heaters for liner paper as well as fluted paper. The first flute roll
is provided with springs on both end to have the fine adjustment. The gum
tray is provided with geared motor on the gum roll, which will
continuously rotate the gum to keep the gum with proper viscosity. The gum
tray is also provided with water flow to keep the gum cool. The Reel Stand
is provided with self-loading arrangement with twin unwinding shafts and
is capable of taking the reel of 48" diameter. The machine is provided
with overhead bridge with guide way, which will have the time of setting
of single facer and will be going directly in rotary sheet cutter to cut
into required size. This will be without damaging the
flutes. |
|
| |
|
TOP
|
|
ACME Card Board
- Corrugated
Board Paper Shearing Machine |
 |
The Machine is hand
operated to cut the paper or corrugated Board. The machine is heavy duty
with hardened - tampered steel knife and mounted on Cast Iron Legs
and with Steel Platform.
Foot operated pressure clamp is
fitted to avoid the slippage while cutting.
|
|
TECHNICAL
SPECIFICATIONS
|
Table
Size |
Cutting Length |
Inside
gauge Working |
Outside gauge Working |
|
25" x 20" |
20" |
15" |
15" |
|
35" x 32" |
30" |
30" |
20" |
|
45" x 42" |
40" |
40" |
20" |
|
55" x 48" |
50" |
45" |
20" |
|
65" x 48" |
60" |
46" |
20" |
|
75" x 48" |
70" |
46" |
20" |
|
85" x 48" |
80" |
46" |
20" |
|
95" x 48" |
90" |
46" |
20" |
|
105" x 48" |
100" |
46" |
20" |
|
| |
|
